Split Plain Bearing Elastomeric Polymer Alloy Water-Lubricated Strip Pad Base Guide

Certification : GB/T19001-2016/ISO9001:2015, CHINA CLASSIFICATION SOCIETY

Place of Origin : China

MOQ : 1

Price : USD, CNY

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 15working days

Packaging Details : Cartoon

Replacement Brand : Thordon

Type Of Lubricant : Water Lubricated Bearing

Bearing Structure : Split Plain Bearing

Bushing Material : Elastomeric Polymer Alloy

Bearing Direction : Radial

Customization : Customized

Applications : Vertical Pump

Contact Now

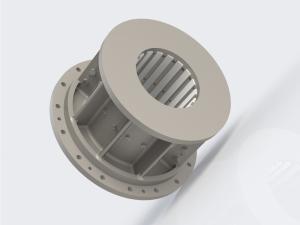

Strip & Pad Base Pump Guide Bearing

INDRON®hybron bearing can be flexibly assembled into split bearing with dovetail slat bearing bush, which is convenient for installation and maintenance without shaft extension, and more reliable when compared with the interference installation of cylinder bearing. If necessary during overhaul, the slat bearing bushes can be conveniently replaced, and a variety of homogeneous elastoplastic polymer alloy dovetail slat bearing bushes of different material grades can be mixed or staggered in one bearing, so that the bearing achieves wear resistance and self-lubricating, and effectively controls the balance of wobble.

Specifications of Dovetail Slat Bearing Bush

Dovetail slat
bearing bush
Groove width Number
of slats
Slat chord width Thickness L/φ
Length ratio L/φ
W, nun Tolerance Ra n CW, mm Tolerance t, mm TSTN
(PREM)
hRBR
1 TQDS40 40 ±0.04 3.2 10/12 40.30 +0.40/-0.00 24±1 1.2-1.8 1.5-2.0
2 TQDS45 45 12/14 45.30 24±1
3 TQDS50 50 12/14 50.30 24±1
4 TQDS55 55 14/16 55.35 +0.45/-0.00 24±1
5 TQDS60 60 14/16 60.35 24±1
6 TQDS65 65 14/16 65.40 +0.50/-0.00 24±1
7 TQDS70 70 ±0.05 14/16 70.40 24±1
8 TQDS75 75 16/18 75.40 24±1
9 TQDS80 80 16/18 80.45 +0.55/-0.00 24±1
10 TQDS85 85 16/18 85.45 24±1

Note:

There are three grades of dovetail slat bearing bush materials to choose from. White TSTN is selected by default for water pumps. In addition, the materials are marked with TQDS40/xxxx (the last four characters represent materials). Tolerance is controlled under the conditions of ambient temperature of 21-28ºC and relative humidity of 40-60% when the slats leave the factory. Beyond the environmental condition, the slat size may be affected by environmental conditions and exceed the tolerance range. In such case, please submit the conditions of measurement environment and slat size, and contact the manufacturer to confirm whether it is reasonable and available. (The maximum length of a slat is 830mm, which can be customized on demand).
Split Plain Bearing Elastomeric Polymer Alloy Water-Lubricated Strip Pad Base Guide
